IN-16 Nixie Tube Clock Kit 'SixNix' (No Tubes)

Price: £36.95


Add to Cart:



    • Hours, minutes an seconds display.
    • Now with MSF, DCF or GPS Synchronisation Option!
    • 12 or 24 hour modes.
    • Date display in DD.MM.YY or MM.DD.YY Format.
    • Alarm clock feature with programmable snooze (6,9,12 or 15 minutes).
    • Programmable auto display of date at end of minute.
    • Programmable Blue LED backlighting. Can follow night blanking.
    • Uses a Crystal Oscillator as the timebase.
    • Optional DCF / MSF / GPS Synchronisation with status indicator LED.
    • Supercapacitor time backup for short power interruptions.
    • Simple time setting using two buttons.
    • Programmable leading zero blanking.
    • Calendar function has full leap year calculation up to 2099.
    • Five programmable neon colon settings (Flashing AM/PM indication, illuminated AM/PM indication, both flashing, both on, both off).
    • Maintains time during setup mode, eg. When changing between Standard Time and Daylight Savings Time.
    • Seconds can be reset to zero to precisely set the time.
    • Programmable night time mode - tubes blanked or dimmed to extend tube life / prevent sleep. disturbance.
    • Separate modes for colon neons during night time mode.
    • Fading digit mode or standard change of digits.
    • 'Slot Machine' cathode poisoning prevention routine.
    • All user preferences stored to non-volatile flash memory.
    • Useful tube-test routine on cold startup.
    • Night mode override with 1 button press. Customisable override period.
    • LED backlights can be permanently disabled in software if you prefer, or not installed.
    • No tiny Surface Mount Components.
    • TUBES ARE NOT INCLUDED.
    • Download user guide and instructions from our kit instructions link on the left of this page

    Download Kit Assembly Instructions Here



    Compatible with our NEW Micro GPS time synchronisation receiver:




    All electronic components are provided, except power supply and tubes. PCB support spacers are not included.
    You can buy the finest quality IN-16 tubes from Nocrotec

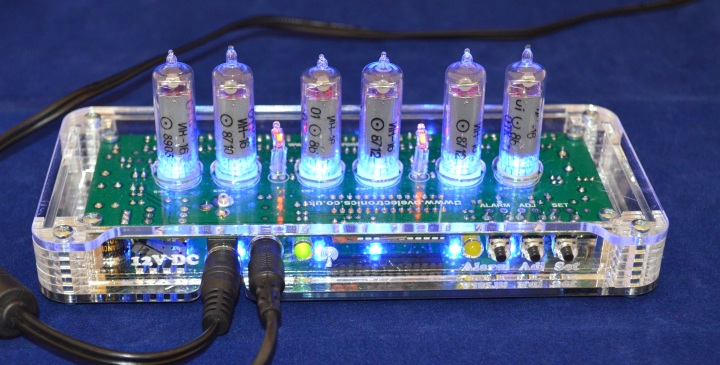

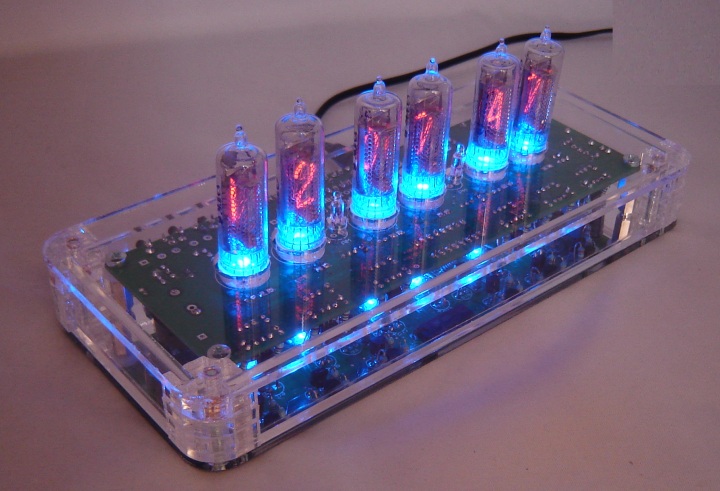

    The case is not supplied, but available in the 'Cases' section of our store.

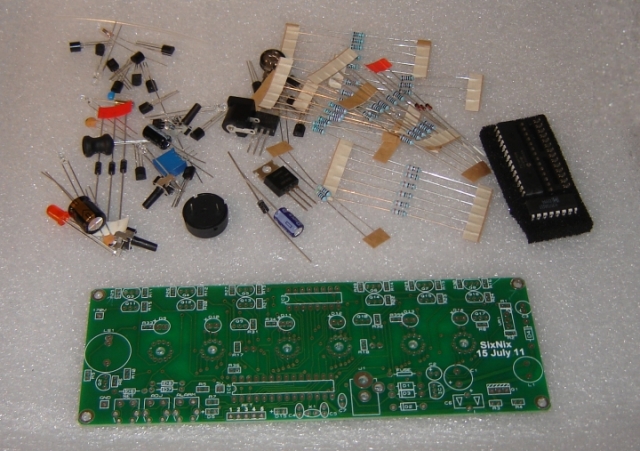

    All transistors, resistors, capacitors, ICs, diodes
    2 X Neon bulbs for hours:minutes:seconds separators
    Double sided, plated - through - hole PCB with green solder resist.
    Fully pre-programmed PIC microcontroller, with socket
    6 X blue LEDs for tube backlights
    Piezo alarm sounder

    Tubes NOT Supplied, but you can buy tubes from a variety of reliable sellers on ebay, in Ukraine and Russia.


    Download Kit Assembly Instructions Here

    Compatible with our Micro GPS Time Receiver and NTP Sync Device:





    The case is not supplied, but available in the 'Cases' section of our store.



You will need a 500mA 12V DC Power Adapter. It is not included, but you can find the specification here, and if you don't already have one at home or office, we have them for sale.

Download Kit Assembly Instructions Here


  • Model:
    [sixnix notu]
  • Shipping Weight: 0.115lbs
  • 28 Units in Stock
