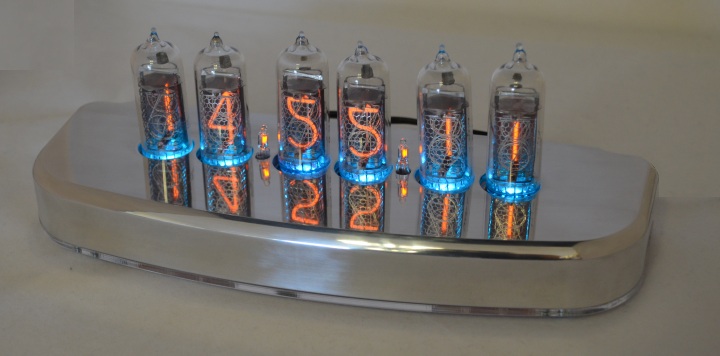

Nixie Clock QTC With IN-14 Tubes Included

£109.95



What is Nixie QTC?
Nixie QTC takes a new path for Nixie Clocks for mid-sized solder-in tubes.
Learning from our past experiences of thousands of kits sold, we recognise a major customer concern and possibly the biggest drawback with solder-in tubes: They are soldered in!

Previously, a failed tube always meant a treacherous operation to delicately remove the tube whilst trying to preserve all traces intact. Whilst this was certainly possible, It was never easy, and made it uncomfortable to give a Nixe Clock as a gift in case a tube ever failed. With Nixie QTC (‘Quick Tube Change’), each tube is soldered only to its own mini ‘tube cell’ PCB. A tube can be changed in minutes with no danger to the main PCB. The small addition in cost is dwarfed by the huge advantage this gives. A single main board is capable of driving tens of different types of solder-in Nixie Tube. You can even completely change the tube type of your clock by installing new tube cells and tubes.




Software
But at such a major change in direction, we have also taken the opportunity to build on the solid software foundations of the predecessor ‘Frank 2’ format and add some truly useful and productive software features. As before, the main controller is the mighty PIC16F1936 running at 16Mhz. The code is programmed entirely in the ‘C’ programming language.

Drive Mode
The former K155ID1 / 74141 nixie driver IC is now replaced by a modern HV5812 High Voltage Driver IC by Supertex. With 20 outputs, it is able to drive the six Nixie Tubes in a very comfortable and low noise 3X2 multiplex.


GPS Time Synchronisation

A radical new clock design deserves a new and exciting GPS receiver module for those that demand the best timekeeping. And, with a groundbreaking price for a GPS receiver, a fully featured Nixie Clock with GPS synchronisation is now within the price range of most buyers.


 Take a look at some of the new visual effects:



· Hours, Minutes and Seconds display
· 12 or 24 hour modes
· Uses a Quartz Crystal Oscillator as the timebase
· Programmable leading zero blanking
· Date display in either DD.MM.YY or MM.DD.YY format
· Programmable date display each minute
· Scrolling display of date or standard display
· Alarm, with programmable snooze period
· Optional DCF / MSF / GPS synchronisation with status indicator LED
· Dedicated DST button to switch between DST and standard time
· Supercapacitor backup. Keeps time during short power outages
· Simple time setting using two buttons
· Programmable leading zero blanking
· Five programmable neon colon settings (Flashing AM/PM indication, illuminated AM/PM indication, both flashing, both on, both off)
· Seconds can be reset to zero to precisely the set time
· Programmable night mode - blanked or dimmed display to save tubes or prevent sleep disturbance
· Rear Indicator LEDs dim at night to prevent sleep disturbance
· Weekday aware ‘Master Blank’ function to turn off HV/ tubes on weekends or during working hours
· Separate modes for colon neons during night mode
· Standard, fading, or fading + scrollback display modes
· ‘Slot Machine’ cathode poisoning prevention routine
· Programmable RGB tube lighting – select YOUR favourite colour palette

· 729 colours possible. Have a different colour of your choice every hour, or autochanging colours
· Not AC frequency dependent – works in all countries
· All user preferences stored to non-volatile memory

The following electronic components are provided, including:

6 X IN-14 Nixie tubes, with 18mm digit height
6 X Tube cell components for mounting the tubes
All transistors, resistors, capacitors, ICs, diodes
2 X Neon bulbs for hours:minutes:seconds separators
Double sided, plated - through - hole PCB with red solder resist.
Fully pre-programmed PIC microcontroller, with socket
Piezo alarm sounder
RGB LED Tube Lighting Pack


The RGB Tube Lighting Pack includes 6 Piranha LEDs, driver MOSFETs, resistors and heat shrink tubing for forming the light guides.

Compatible with our NEW Micro GPS time synchronisation receiver:





Uses  12V DC power supply (minimum 500 mA) This is not supplied - It is more economical for the buyer to buy a suitable adapter locally, suitable for local power outlet type. Full details of the power supply are provided in the comprehensive documentation, and it is very easy to obtain cheaply.





Case available in our store









Add to Cart:

  • Model: QTC14TU
  • Shipping Weight: 0.3Kg
  • 15 Units in Stock
