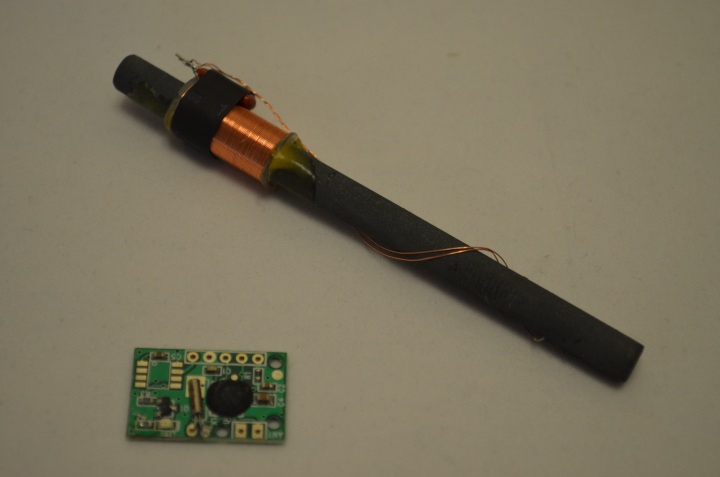

High Sensitivity WWVB Time Receiver Module With Antenna

£9.95



  • Receives UTC Time from WWVB 60 KHz transmitter near Fort Collins, Colorado.
  • On-board indicator LED to signal the time code pulses. Helps alignment during code development.
  • Simple interface, only 4 pins to connect.
  • Provides output in convenient inverted format (output is low, and goes high once per second).
  • Low power standby mode - connect PON to Vdd. Connect PON to GND for normal operation.
  • 100mm antenna for higher sensitivity
  • ONLY AVAILABLE FOR DELIVERY OUT OF THE EU
  • PLEASE DO NOT ORDER IF YOU ARE IN THE EU - YOUR PAYMENT WILL BE RETURNED



Download technical data sheet for the module here




A detailed description of the WWVB transmitter and the signal output format can be found here:

http://www.nist.gov/physlab/div847/grp40/wwvb.cfm





  • PLEASE NOTE: To better protect this delicate item in transit, the antenna will be supplied separate to the PCB. It is a very simple 1 minute job to solder the 2 antenna wires onto the pads on the PCB.


Add to Cart:

  • Model: SYM-RFT-60HS
  • Shipping Weight: 0.02Kg
  • 292 Units in Stock
