Nixie Maestro is a fully-featured nixie clock kit, using a semi - assembled SMD board. The clock shows time and date on six vintage IN-12 Nixie Tubes, which are sourced from the Ukraine. Each tube has a RGB LED to illuminate it, which creates a beautiful spectrum of colour effects.

The Bundle includes the Kit, Tubes, Finned Case, 12V Power Adapter.

Here are the key features of the MAESTRO Bundle Kit:

• Hours, Minutes and Seconds display
• Drives six IN-12 Nixie Tubes (Included)

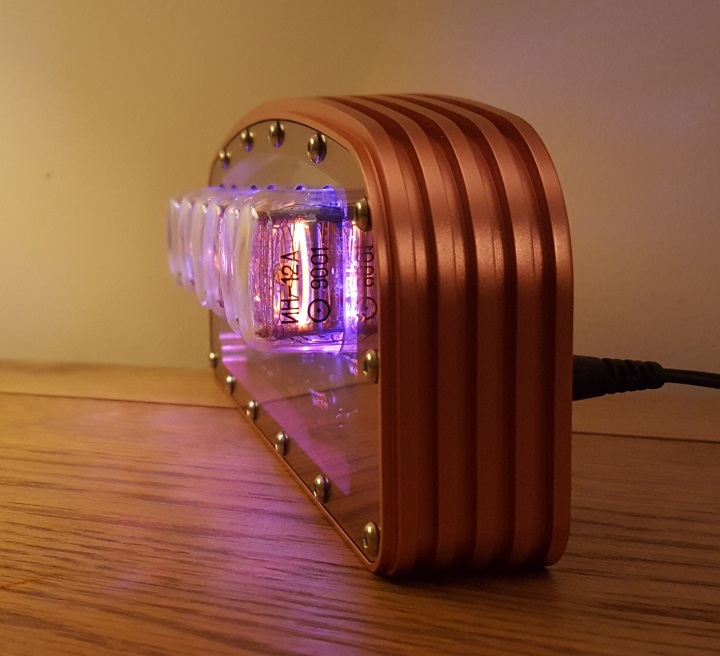

• CNC Machined Aluminum case, Copper Anodised
• Woldwide 12V Power Supply Included
• Uses a Quartz Crystal Oscillator as the timebase
• 12 or 24 hour modes
• Programmable leading zero blanking
• Date display in either DD.MM.YY or MM.DD.YY or YY.MM.DD format
• Programmable date display each minute
• Scrolling display of date or standard display
• Alarm, with programmable snooze period
• Optional GPS / XTERNA synchronisation with status indicator LED
• Dedicated DST button to switch between DST and standard time
• Supercapacitor backup. Keeps time during short power outages
• Simple time setting using two buttons
• Configurable for leading zero blanking
• Double dot colon neon lamps
• 11 colon neon modes including AM / PM indication (top / bottom or left / right), railroad (slow or fast) etc.
• Seconds can be reset to zero to precisely the set time
• Programmable night mode - blanked or dimmed display to save tubes or prevent sleep disturbance
• Rear Indicator LEDs dim at night to prevent sleep disturbance
• Weekday aware ‘Master Blank’ function to turn off HV/ tubes and LEDs on weekends or during working hours
• Separate modes for colon neons during night mode
• Standard, fading, or crossfading with scrollback display modes.
• ‘Slot Machine’ Cathode poisoning prevention routine
• Programmable RGB tube lighting – select YOUR favourite colour palette
• 729 colours possible. Have a different colour or your choosing every hour, or autochanging colours
• Not AC frequency dependent – works in all countries
• All user preferences stored to non-volatile memory
• Additional wireless functions if XTERNA module purchased:
  - Display of outdoor temperature in Celsius or Fahrenheit each minute.
  - Min / Max temperature in last 24 hours
  - Wireless, Auto Sync of time from GPS with auxilliary TCXO
  - GPS Sync time, and time since last GPS Fix
  - Voltage of XTERNA module battery
  - Firmware version of XTERNA module

Download Kit Assembly Instructions Here

Full kit of parts, including double dot neon colons, pre-soldered passives and SMD ICs, tube sockets, RGB LEDs and Double Dot Neon Colons.
433 Mhz Receiver included if you also order the matching XTERNA transmitter.



All the SMD components are pre-soldered! Only the through hole components need to be soldered.

Here is the assembled Clock, ready to mount in the included case.

A high quality 12V Power Supply is included, with a long 6ft cable.


Optional Time Receivers (Select with the dropdown box):
1. GPS Time receiver, easy to configure, but the module needs to be within 2 metres (6 feet) of a window

2. XTERNA Time / Temperature Transmitter:



3. WiFi Time receiver. Use a smartphone to configure, sits discreetly behind the clock on a 15cm cable

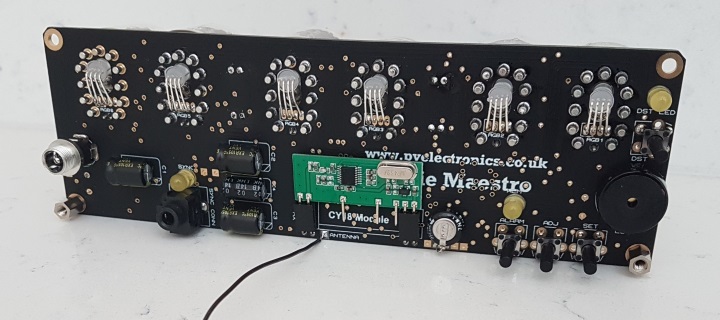

Rear of the PCB showing the green 433 MHz receiver module, which receives time and temperature from the optional XTERNA module. We will supply the 433 MHz receiver if you also order the XTERNA.
