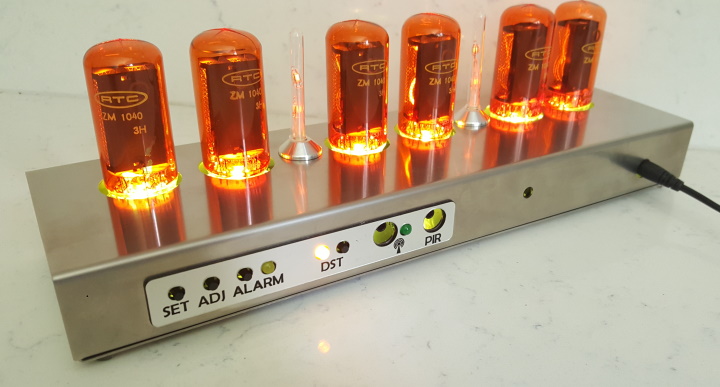

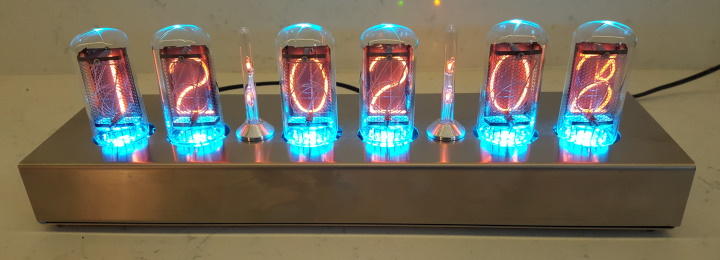

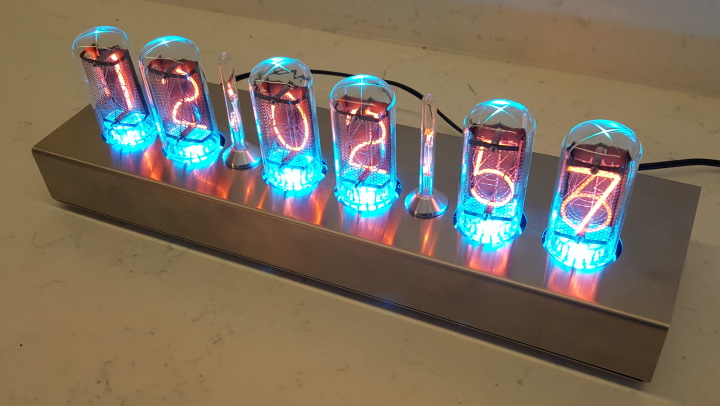

Complete ZM1040 Nixie Clock Kit with Stainless Case

Price: £499.50  £479.00
Save: 4% off


Add to Cart:

  • INCREDIBLE VALUE
  • SECTRUM 1040 KIT, STAINLESS STEEL CASE, TUBES, GPS OR WiFi TIME SYNC, POWER SUPPLY
  • JUST ADD YOUR OWN SOLDER AND ASSEMBLY!



  • Hobby Kit of Electronic Components
  • Includes Large, ZM1040 tubes, with 30mm digit height
  • Full color RGB Tube Lighting under each tube

The tubes are new European with 30mm digit height. Although slightly smaller than the more well known IN-18 tubes, these are very beautiful and reliable tubes. The Orange coating on the tubes can easily removed by soaking the tubes in hot soapy water. The coating just peels off like a decal.


Here are the main electronic components of the kit

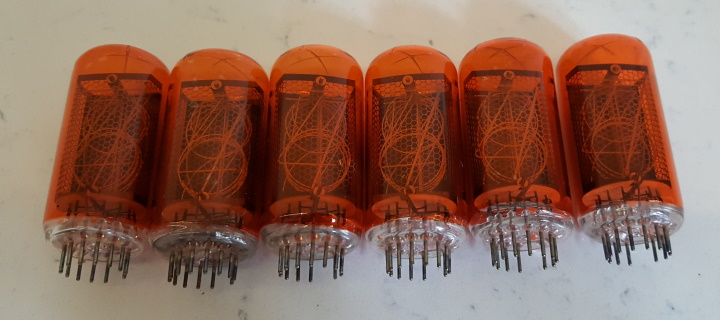

Six New, Old Stock Unused Tubes, with 30mm digit height are included

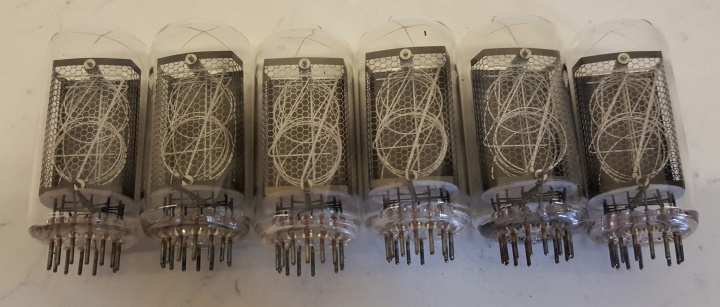

You can easily remove the orange coating by soaking the tubes in hot soapy water:

Here is the Stainless Steel Case, with all hardware including neon cover glasses and base adornments



Here is a brief overview of some of the features and functions:

  • Hours, Minutes and Seconds display on six ZM1040 or compatible Nixie Tubes
  • 30mm (1.2") digit height
  • Direct drive to six medium size Nixie Tubes
  • Noiseless, Direct Drive giving optimum digit clarity
  • Uses a Quartz Crystal Oscillator as the timebase
  • 12 or 24 hour modes
  • Programmable leading zero blanking
  • Date display in either DD.MM.YY or  MM.DD.YY or YY.MM.DD format
  • Programmable date display each minute
  • Scrolling display of date or standard display
  • Alarm, with programmable snooze period
  • Optional GPS / WiFi /  XTERNA synchronisation with status indicator LED
  • Dedicated DST button to switch between DST and standard time
  • Supercapacitor backup. Keeps time during short power outages
  • PIR Motion Sensor input and accessory available. Configurable timeout period
  • Simple time setting using two buttons
  • Configurable for leading zero blanking
  • Double dot colon neon lamps with cover glasses
  • 11 colon neon modes including AM / PM indication (top / bottom or left / right), railroad (slow or fast) etc.
  • Seconds can be reset to zero to precisely the set time
  • Programmable night mode - blanked or dimmed display to save tubes or prevent sleep disturbance
  • Rear Indicator LEDs dim at night to prevent sleep disturbance
  • Weekday aware ‘Master Blank’ function to turn off HV/ tubes and LEDs on weekends or during working hours
  • Separate modes for colon neons during night mode
  • Standard, fading, or crossfading with scrollback display modes
  • ‘Slot Machine’ Cathode poisoning prevention routine
  • Programmable RGB tube lighting – select YOUR favourite colour palette
  • 729 colours possible. Have a different colour or your choosing every hour, or autochanging colours
  • Not AC frequency dependent – works in all countries
  • All user preferences stored to non-volatile memory
  • Additional wireless functions if XTERNA module and Adapter are used:
    - Display of outdoor temperature in Celsius or Fahrenheit each minute.
    - Min / Max temperature in last 24 hours
    - Wireless, Auto Sync of time from GPS with auxilliary TCXO
    - GPS Sync time, and time since last GPS Fix
    - Voltage of XTERNA module battery
    - Firmware version of XTERNA module

Download Kit Assembly Instructions Here



Pre-assembled SMD High Voltage Module is included





laser-cut socket holders




NOT INCLUDED, but a very useful addition is the PIR Motion Sensor, which
powers down the clock when the room is empty.

Also Included is either our GPS Time Receiver or WiFi NTP Sync Device:


GSP Time Receiver - easy to set up, buy needs to see a window



WiFi Time Receiver - A bit more involved to configure, but is more discreet and does not need to be near a window


Please add a note on your order to tell us if you want the GPS or the WiFi !

NOT INCLUDED, but compatible with our XTERNA Time / Temperature Transmitter:


If you want this option instead of the GPS or WiFi, please send us a message prior to ordering (£20 surcharge)




A 12V DC power adapter of 1A is included. It is a very high
quality unit with a long 1.8m (6ft) cable; we will send the correct type for your shipping location!




  • Model:
    [SPECT1040DEAL]
  • Shipping Weight: 0.6kgs
  • 5 Units in Stock

-->
